General

Series: 2Look4 50 Plug

Brand: Prolicht
Prolicht products

Division: Architectural
Architectural products

Mounting Type: Trimless
Trimless products

Mounting Location: Ceiling
Ceiling products

Subcategory: Profile
Profile products



Physical

Ceiling Thickness (mm): 10 / 12.5 / 15

Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below

Fixture Material: Anodized Aluminum



Electrical

Lamp Type: LED (Zhaga Standard)

Dimming: Non-Dimmable / 0-10V Dimming

Driver Included: Yes

Driver Location: Integrated

Driver Type: Constant Current - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277



LED

Lamp Life (hrs): 50000

Upon Request: Special Color Temperature RGBW Tunable Special LED



Optical

Upon Request: Special Beam Angles



Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP20





Base Model Number: A32L450-PLG-TRI-SYS

Description

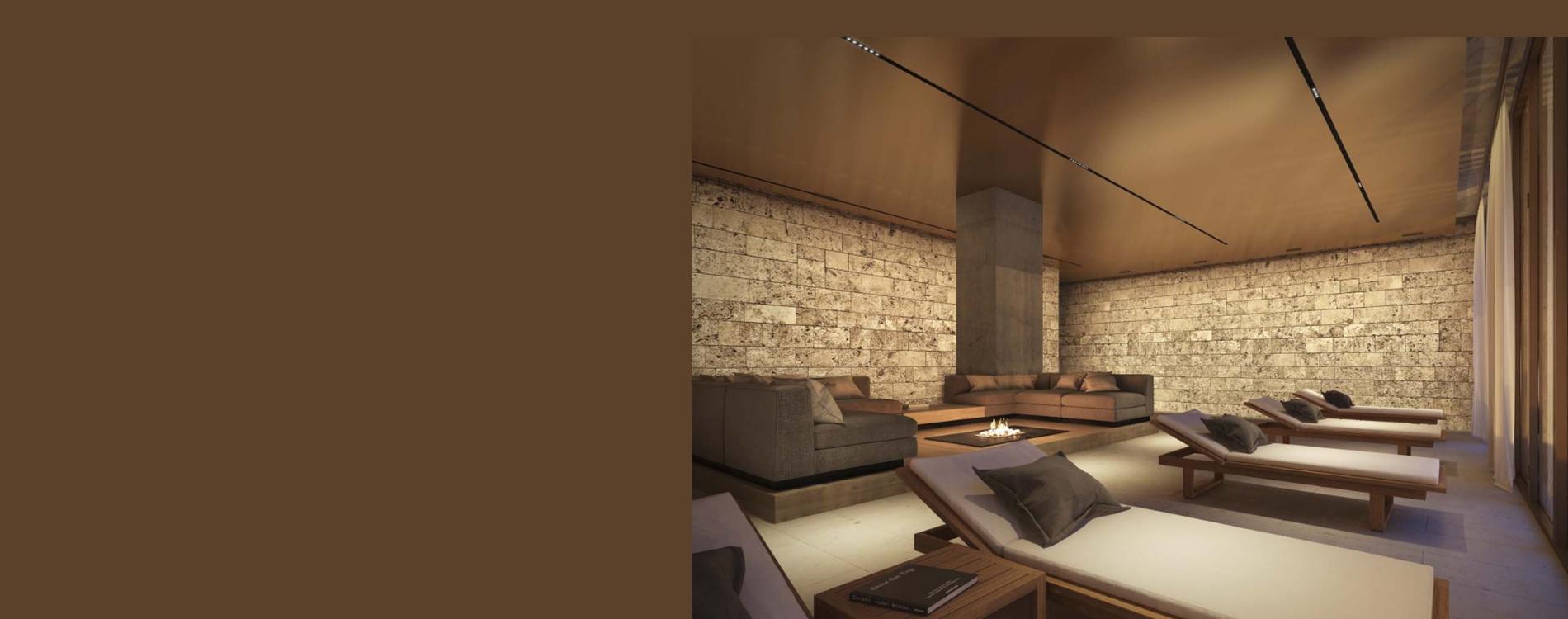

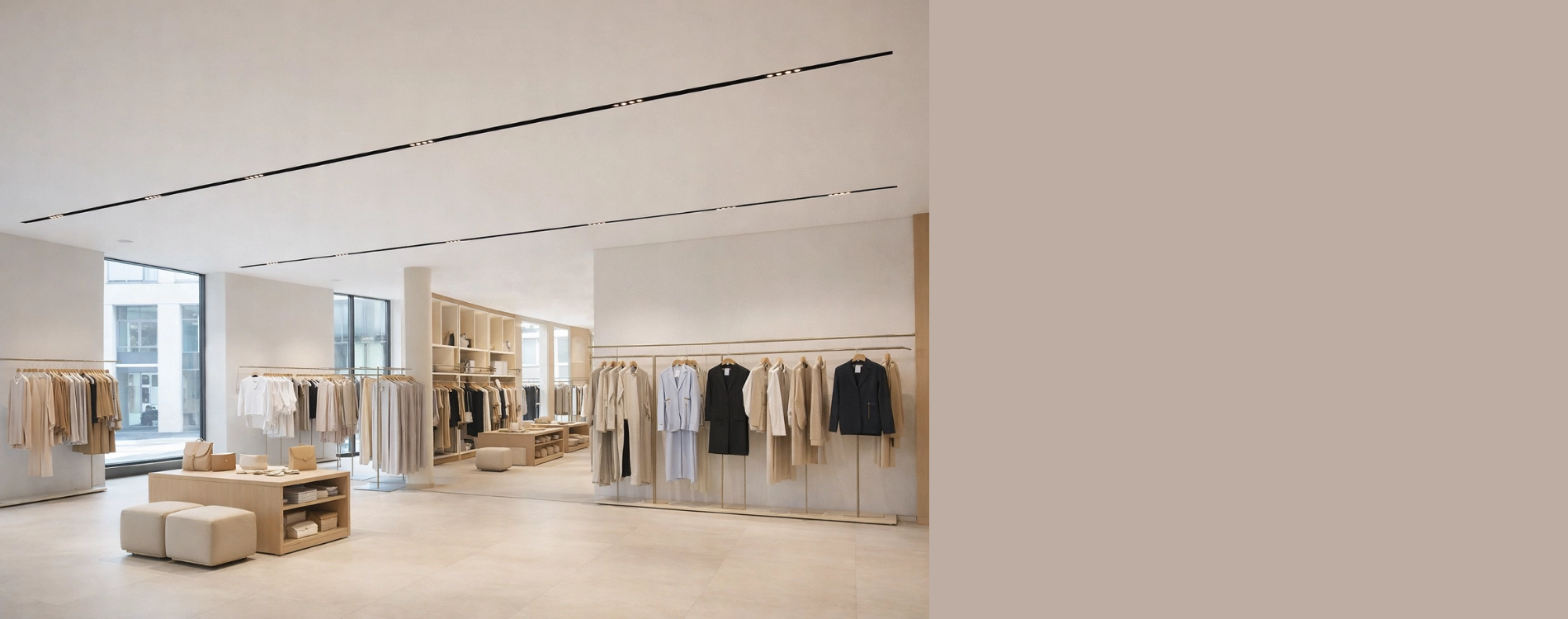

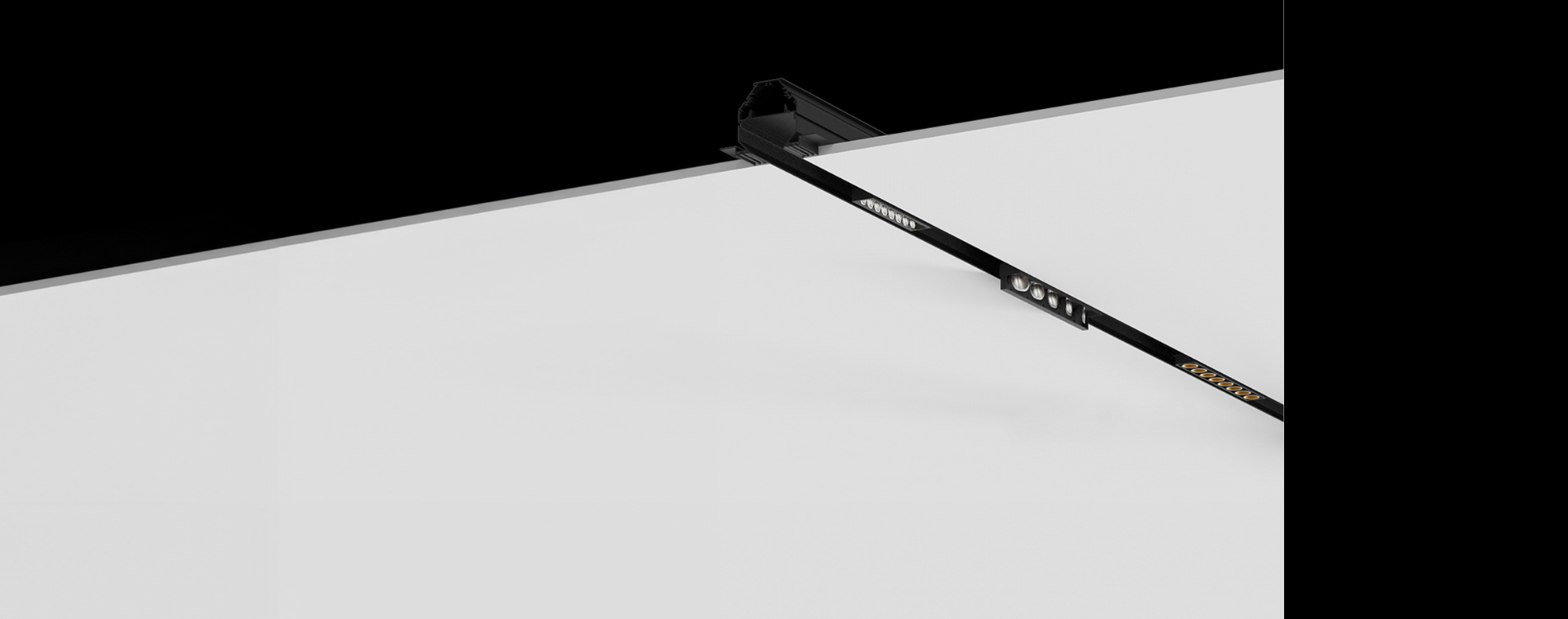

2Look4 50 Plug is a trimless lighting series designed for those seeking a minimalist, aesthetic, and glare-free lighting solution. With a visible opening of just 50mm, this knife-edge profile system utilizes a 230V plug system for effortless mounting of Centriq luminaires, Magiq downlights or wallwashers. Enhance your lighting design with optional Korona Cones and swiveling modules for added accents. Tailor your profile system to your needs by choosing from different inserts and components, creating the perfect product for your project.

Manufactured in Austria, by Prolicht.

Product Components to be ordered separately

Image SKU Description Datasheet
Magiq by Prolicht – 20 1/16″ x 3 11/16″ ,  offers LED lighting solutions | Zaneen Architectural A35413- Magiq 4 - Track Head - 13.3W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Black or White - Reflector 8° / 14° / 34°
Magiq by Prolicht – 21 10/16″ x 3 11/16″ ,  offers LED lighting solutions | Zaneen Architectural A35416- Magiq 4 Korona - Track Head - 13.3W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflector: 8° / 18° / 34°
Magiq by Prolicht – 21 5/8″ x 3 11/16″ ,  offers LED lighting solutions | Zaneen Architectural A35419- Magiq 8 - Track Head - 26.6W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Black or White Base - Reflector 8° / 14° / 34°
Magiq by Prolicht – 21 5/8″ x 3 11/16″ ,  offers LED lighting solutions | Zaneen Architectural A35422- Magiq 8 Korona - Track Head - 26.6W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflector 8° / 14° / 34°
Magiq Wallwash by Prolicht – 21 5/8″ x 3 11/16″ ,  offers LED lighting solutions | Zaneen Architectural A35425- Magiq Wallwash - Track Head - 31.6W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Black or White
A380145 2Look4 50 Plug - Track - Corner Connector
Magiq Micro Dot by Prolicht – 21 5/8″ x 3 11/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A380146- Magiq 4 Micro-Dot - 2Look4 50 Plug Profile Insert - 13.3W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Black - Dimmable - Lens - Optics 22° / 38°
Magiq Micro Dot by Prolicht – 21 5/8″ x 3 11/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A380147- Magiq 8 Micro-Dot - 2Look4 50 Plug Profile Insert - 26.9W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Black - Lens - 22° / 38°
A38577- 2Look4 50 Plug /Track - Cap Profile per Meter (Max. 3000mm)
A38578- 2Look4 50 Plug/Track - End Cap -
A3857900 2Look4 50 Plug/Track - Linear Coupler (1 pair)
A3859400 2Look4Light Imagine - Power Feed Socket - 3 Wire
A3859500 2Look4Light Imagine - Power Feed Socket - 5 Wire
A3859600 2Look4Light Imagine - Plug Connectors - 3 Wire
A3859700 2Look4Light Systems - Plug Connectors - 5 Wire
A3859800 2Look4 Systems - Plug Connector 5x1.0 - 1000m
A3859900 2Look4 Systems - Plug Connector 5x1.0 - 2000mm
A3860000 2Look4 Systems - Plug Connector 5x1.0 - 3000mm
A3860100 2Look4 Systems - Plug Connector 3X0.75 - 1000mm Cable
A3860200 2Look4 Systems - Plug Connector 3x0.75 - 2000mm
A3860300 2Look4 Systems - Plug Connector 3x0.75 - 3000mm
A38606- 2Look4 50 Plug - Aluminum Profile Per Meter -
Centriq by Prolicht – 2 5/16″21 5/8″ x 3 1/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural A38844- Centriq - Track Head - 12.1W / 14.7W - LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Beam 10°
Centriq by Prolicht – 2 5/16″21 5/8″ x 3 1/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural A38845- Centriq - Track Head - 13.4W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflectors: 20° / 40° / 60°
Centriq by Prolicht – 2 15/16″21 5/8″ x 4 15/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A38846- Centriq - Track Head - 18.7W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflectors 20° / 25° / 40°
Centriq by Prolicht – 2 15/16″21 5/8″ x 4 15/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A38847- Centriq - Track Head - 26.4W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflectors 20° / 25° / 40°
Centriq by Prolicht – 2 15/16″21 5/8″ x 4 15/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A38848- Centriq - Track Head - 12.1W / 14.7W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Beam 10°
Centriq by Prolicht – 3 12/16″21 5/8″ x 5 7/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural A38849- Centriq - Track Head - 18.7W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflectors 18° / 26° / 40°
Centriq by Prolicht – 3 12/16″21 5/8″ x 5 7/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural A38850- Centriq - Track Head - 26.4W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflectors 18° / 26° / 40°
Centriq by Prolicht – 3 12/16″21 5/8″ x 5 7/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural A38851- Centriq - Track Head - 12.1W / 14.7W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Beam 10°
Magiq by Prolicht – 21 10/16″ x 3 11/16″ ,  offers LED lighting solutions | Zaneen Architectural A38853- Magiq 4 Korona - Track Head - 13.3W LED (Zhaga Standard) - 2700K - White - Reflectors 10° / 20° / 40°
Magiq Hollow Wallwash by Prolicht – 17 11/16″ x 3 14/16″ Track, Profile offers LED lighting solutions | Zaneen Architectural A38856- Magiq Hollow Wallwash - Track Head - 19.0W LED (Zhaga Standard) - 2700K / 3000K / 4000K - Black
Magiq Hollow Wallwash by Prolicht – 17 11/16″ x 1 15/16″ Track,  offers LED lighting solutions | Zaneen Architectural A38858- Magiq Hollow Wallwash Korona - Track Head - 19.0W LED (Zhaga Standard) - 2700K / 3000K / 4000K - Black

Also Available within Series

2Look4 50 Plug by Prolicht –  Trimless, Profile offers LED lighting solutions | Zaneen Architectural A32L450-PLG-TRI-SYS 2LOOK4 - 50 Plug - Trimless - Profile System

Downloads

2Look4 50 Plug by Prolicht –  Trimless, Profile offers LED lighting solutions | Zaneen Architectural

2Look4 50 Plug by Prolicht –  Trimless, Profile offers LED lighting solutions | Zaneen Architectural

Ceiling
Ceiling thickness

10 / 12.5 / 15mm /
''
Ceiling thickness selection
Included or excluded LED driver/transformer/ control gear
Dimmable
Special LED (upon request) RGB, RGBW, tunable, gold+, meat+, art+, fashion+
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze	MOS - Moonlight Silver ROR - Rosewood Red
Digital Disclaimer: Not all screens are calibrated the same, and therefore, colors will appear differently between screens.
