Series: Micro Track 48V
Subseries: Mirco Track 48V SUS
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Track
Track products
Product Type: Track System Low Voltage
Track System Low Voltage products
Mounting Location: Ceiling
Ceiling products



Physical

Fixture Material: Anodized Aluminum



Electrical

Lamp Type: LED (Zhaga Standard)
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Constant Voltage (V): 48



LED

Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: STMSH48V-SUS-SYS New

Description

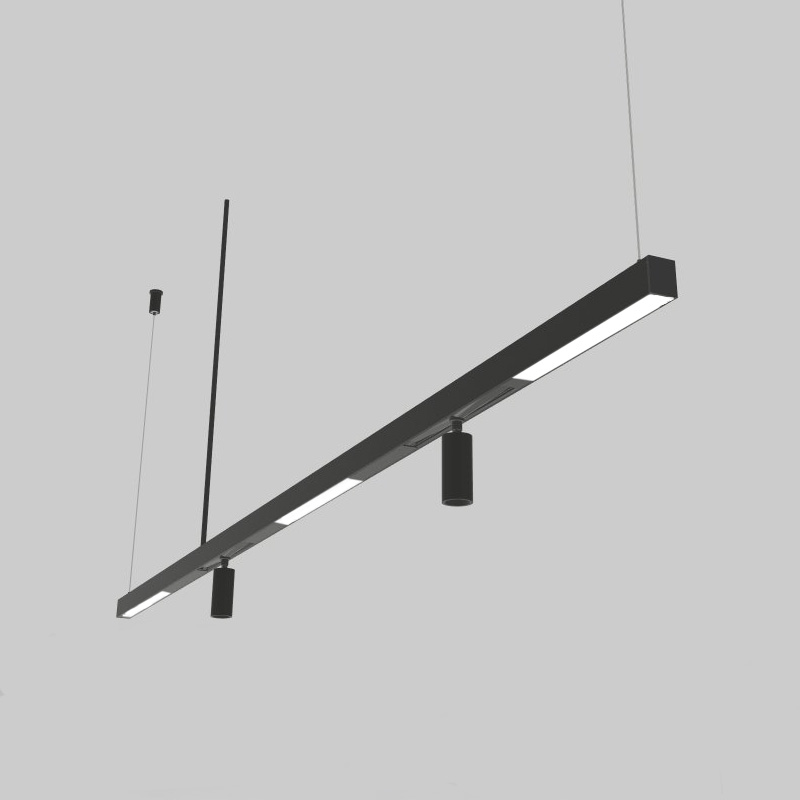

Micro Track 48V is a modular 48V low-voltage architectural track system designed for maximum flexibility and seamless integration. Engineered from extruded aluminum with integrated databus technology, it ensures reliable power distribution within a refined, minimal profile. Available in surface, suspension, trimless, and curved configurations, and offered in white or black embossed finishes depending on the selected version, it adapts effortlessly to both linear and organic layouts while supporting precise lighting concepts with clean architectural continuity.

The trimless versions integrate flush into ceilings and walls, creating a fully embedded and visually discreet result. Suspended H-Track and Round Track options enable double-emission applications, combining direct and indirect lighting within a single structured system. Micro Track 48V is not just a mounting solution, but a versatile architectural infrastructure that expands design freedom while maintaining visual discipline.

Manufactured in Austria, by Prolicht.

Product Components to be ordered separately

Image SKU Description Datasheet
Bilo by Prolicht – 4 3/4″ x 4 3/4″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural A380656- Bilo Insert for Minimal Track System Suspension - Ø120mm - 6.4W LED , 48V, CRI:90, Beam 180
Hangover Plug by Prolicht – 1 1/8″ x 5 7/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural A380659- Hangover Plug Insert for Minimal Track Suspension - Ø28mm / 1 1/8" x 150mm / 5 7/8" - 6.4W LED (Zhaga Standard) - 48V - 2700K / 3000K / 3500K / 4000K - Non-Dimming / Dali Dimming - Beam Angle: 22°/26°/ 56° - Shine Ring - CRI: 90
Hangover Plug by Prolicht – 1 1/8″ x 11 13/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A380660- Hangover Plug Insert for Minimal Track Suspension - Ø28mm / 1 1/8" x 300mm / 11 13/16" - 6.4W LED (Zhaga Standard) - 48V - 2700K / 3000K / 3500K / 4000K - Lens 22°/26°/ 56° - Shine Ring - CRI: 90
Hangover Plug by Prolicht – 1 1/8″ x 17 11/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A380661- Hangover Plug Insert for Minimal Track Suspension - Ø28mm / 1 1/8" x 450mm / 17 11/16" - 6.4W LED (Zhaga Standard) - 48V - 2700K / 3000K / 3500K / 4000K - Lens 22°/26°/ 56° - Shine Ring - CRI: 90
Hangover Plug by Prolicht – 1 9/16″ x 5 7/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural A380662- Hangover Plug Insert for Minimal Track Suspension - Ø40mm / 1 9/16" x 150mm / 5 7/8" - 9.8W LED (Zhaga Standard) - 48V - 2700K / 3000K / 3500K / 4000K - Lens 40°/ 52° - Shine Ring - CRI: 90
Hangover Plug by Prolicht – 1 9/16″ x 11 13/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A380663- Hangover Plug Insert for Minimal Track Suspension - Ø40mm / 1 9/16" x 300mm / 11 13/16" - 9.8W LED (Zhaga Standard) - 48V - 2700K / 3000K / 3500K / 4000K - Lens 40°/ 52° - Shine Ring - CRI: 90
Hangover Plug by Prolicht – 1 9/16″ x 17 11/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A380664- Hangover Plug Insert for Minimal Track Suspension - Ø40mm / 1 9/16" x 300mm / 11 13/16" - 9.8W LED (Zhaga Standard) - 48V - 2700K / 3000K / 3500K / 4000K - Lens 40°/ 52° - Shine Ring - CRI: 90
Hangover Plug by Prolicht – 2 15/16″ x 5 7/8″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural A380665- Hangover Plug Insert for Minimal Track Suspension - Ø75mm/2 15/16" - 150mm/5 7/8" - 10W LED - 2700K / 3000K / 3500K / 4000K - 48Vdc, CRI90 - Shine Ring - Optics: 18° / 36° / 56­°
Hangover Plug by Prolicht – 2 15/16″ x 5 7/8″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural A380666- Hangover Plug Insert for Minimal Track Suspension - Ø75mm/2 15/16" - 150mm/5 7/8" - Direct - 20W LED - Max. 1826lm, 2700K / 3000K / 3500K / 4000K - Non-Dimming / Dali Dim - 48Vdc, CRI90 - Shine Ring - Optics: 18° / 36° / 56­°
Hangover Plug by Prolicht – 1 1/8″ x 5 7/8″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural A380667- Hangover Plug Micro Insert for Minimal Track Suspension - Ø28/1 1/8" - 150mm/5 7/8" - Direct/Indirect - 6.4W LED (Zhaga Standard), 2700K / 3000K / 3500K / 4000K - Non-Dimming / Dali Dim - 48Vdc, CRI90 - Optics: 32° / 58°
Hangover Plug by Prolicht – 1 1/8″ x 11 13/16″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural A380668- Hangover Plug Micro for Minimal Track Suspension - Ø28/1 1/8" - 300mm/11 13/16" - 6.4W LED (Zhaga Standard), 2700K / 3000K / 3500K / 4000K - Non-Dimming / Dali Dim - 48Vdc, CRI90
Hangover Plug by Prolicht – 1 1/8″ x 17 11/16″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural A380669- Hangover Plug Micro Insert for Minimal Track Suspension - Ø28/1 1/8" - 450mm/17 11/16" - 6.4W LED (Zhaga Standard), 2700K / 3000K / 3500K / 4000K - Non-Dimming / Dali Dim - 48Vdc, CRI90 - Optics: 32° / 58°
Imagine Micro by Prolicht – 7/8″ x 2 5/8″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural A380670- Imagine Micro Insert for Minimal Track Suspension - 23mm / 7/8" x 66mm / 2 5/8" - 4.4W LED, 2700K / 3000K / 3500K / 4000K - 48 - Non-Dimming / Dali Dim - Adjustable - CRI:90 - Beam: 26° / 28° / 38° / 46° / 64°
Imagine Micro by Prolicht – 1 3/8″ x 3 9/16″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural A380671- Imagine Micro Insert for Minimal Track Suspension - 35mm/1 3/8" x 90mm/2 5/8" - 9.8W LED, 2700K / 3000K / 3500K / 4000K - 48V, Adjustable - Non-Dimmg / Dali Dim, CRI:90 - Beam: 22° / 36° / 62°
Imagine Micro Flex by Prolicht – 1 7/16″ x 3 15/16″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural A380672- Imagine Micro Flex Insert for Minimal Track Suspension - Ø37mm/1 7/16" x 100mm/3 15/16" - 7.1W LED, 48V, Adjustable - CRI:90 - Beam: 14° / 20° / 52°
Imagine Micro Dot by Prolicht – 1 3/8″ x 3 9/16″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural A380673- Imagine Micro Dot Insert for Minimal Track Suspension - 35mm/1 3/8" x 90mm/2 5/8" - 6.4W LED, 2700K / 3000K / 3500K / 4000K. 48V, Adjustable, Non-Dimming / Dali Dim, CRI:90 - Beam: 34° / 52°
Magiq Micro by Prolicht – 11 13/16″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural A380674- Magiq Micro Insert for Minimal TracK Suspension - 4.9W LED (Zhaga Standard) - 2700K / 3000K / 4000K Max. 365lm, Beam Angle 54
Microline by Prolicht – 26 9/16″ x 1/4″ Surface, Modular Systems offers LED lighting solutions | Zaneen Architectural A380676- Microline Insert for Minimal Track Suspension - L=672mm, LED 8W, max. 429lm, CRI90
Microline by Prolicht – 46 1/4″ x 1/4″ Surface, Modular Systems offers LED lighting solutions | Zaneen Architectural A380677- Microline Insert for Minimal Track Suspension - L=1170mm / 46 1/16", LED 15.8W, max. 772lm, CRI90
Microline by Prolicht – 65 7/8″ x 1/4″ Suspension, Linear Profiles offers LED lighting solutions | Zaneen Architectural A380678- Microline Insert for Minimal Track Suspension - L=1670mm / 65 3/4", L24W LED,2700K / 3000K - max. 1287lm, CRI90
Snooker by Prolicht – 2 13/16″ x 2 13/16″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural A380680- Snooker Insert for Minimal Track Suspension - 6.4W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K, 48Vdc, CRI90, Non- Dimming / Dali Dimming - Beam Angle: 32°/58° - Cable Options - Shine Ring
Snooker Glass by Prolicht – 2 15/16″ x 3″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural A380681- Snooker Insert for Minimal Track Suspension Round - 6.4W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K, 48Vdc, CRI90, Non- Dimming / Dali Dimming - Beam Angle: 32°/58° - Cable Options - Diffuser Touch of Color Options
A380753- Minimal Track Suspension - Imagine Micro - Insert - 35mm/1 3/8" x 90mm/2 5/8" - 6.4W LED, 2700K / 3000K / 3500K / 4000K - 48V, Adjustable - Non-Dimming / Dali Dim, CRI:90 - Beam: 14°
by Prolicht – 5 9/16″ x 3/8″ Track, offers LED lighting solutions | Zaneen Architectural STMS-121-48V-BLK End Feed for Micro Track - Black
by Prolicht – 5 9/16″ x 3/8″ Track, offers LED lighting solutions | Zaneen Architectural STMS-121-48V-WHI End Feed for Micro Track - White
by – 4 9/16″ x 1/4″ , offers LED lighting solutions | Zaneen Architectural STMS-121S-BLK Concealed End Feed for Micro Track - Black
by – 4 9/16″ x 1/4″ , offers LED lighting solutions | Zaneen Architectural STMS-121S-WHI Concealed End Feed for Micro Track - White
by Prolicht – 4 7/16″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural STMS-141-48V-BLK Central Feed for Micro Track - Black
by Prolicht – 4 7/16″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural STMS-141-48V-WHI Central Feed for Micro Track - White
by Prolicht – Track, offers LED lighting solutions | Zaneen Architectural STMS-210-48V Cutting Tool For PVC for field cutting
by Prolicht – 3 7/16″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural STMS-3400-48V-BLK L-Connector for Micro Track, Inside Corner (Feedable) - Black
by Prolicht – 3 7/16″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural STMS-3400-48V-WHI L-Connector for Micro Track, Inside Corner (Feedable) - White
by Prolicht – 9 3/8″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural STMS-3600-48V-BLK Adjustable Connector for Micro Track, Adjustable Corner (Feedable) - Black
by Prolicht – 9 3/8″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural STMS-3600-48V-WHI Adjustable Connector for Micro Track, Adjustable Corner (Feedable) - White
by Prolicht – 3 7/16″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural STMS-3700-48V-BLK L-Connector for Micro Track, Ceiling-Wall (Feedable) - Black
by Prolicht – 3 7/16″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural STMS-3700-48V-WHI L-Connector for Micro Track, Ceiling-Wall (Feedable) - White
by Prolicht – 48″ x 3/16″ Track, offers LED lighting solutions | Zaneen Architectural STMS-4400R-48V-BLK Cover 4' for Micro Track - Black
STMS-4400R-48V-GRY Cover 4' for Micro Track - Grey
STMS-4400R-48V-OPL Cover 4' for Micro Track - Opal
by Prolicht – 48″ x 3/16″ Track, offers LED lighting solutions | Zaneen Architectural STMS-4400R-48V-WHI Cover 4' for Micro Track - White
by Prolicht – 96″ x 3/16″ Track, offers LED lighting solutions | Zaneen Architectural STMS-4800R-48V-BLK Cover 8' for Micro Track - Black
STMS-4800R-48V-GRY Cover 8' for Micro Track - Grey
STMS-4800R-48V-OPL Cover 8' for Micro Track - Opal
by Prolicht – 96″ x 3/16″ Track, offers LED lighting solutions | Zaneen Architectural STMS-4800R-48V-WHI Cover 8' for Micro Track - White
by Prolicht – 1 15/16″ x 3/16″ Track, offers LED lighting solutions | Zaneen Architectural STMS-512CL-48V-BLK Ceiling Mounting Long Bracket for Surface Mount Micro Track- Black
by Prolicht – 1 15/16″ x 3/16″ Track, offers LED lighting solutions | Zaneen Architectural STMS-512CL-48V-WHI Ceiling Mounting Long Bracket for Suspension Micro Track- White
by Prolicht – 63/64″ x 3/16″ Track, offers LED lighting solutions | Zaneen Architectural STMS-512CS-48V-BLK Ceiling Mounting Short Bracket for Suspension Micro Track- Black
by Prolicht – 63/64″ x 3/16″ Track, offers LED lighting solutions | Zaneen Architectural STMS-512CS-48V-WHI Ceiling Mounting Short Bracket for Suspension Micro Track - White
by Prolicht – 5 3/16″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural STMS-526D-48V-BLK Double Spot Adapter Without Contacts - Black
by Prolicht – 5 3/16″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural STMS-526D-48V-WHI Double Spot Adapter Without Contacts - White
by Prolicht – 5 15/16″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural STMS-526E-48V-BLK Adapter for Electronic No Contacts - Black
by Prolicht – 5 15/16″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural STMS-526E-48V-WHI Adapter for Electronic No Contacts - White
by Prolicht – 3 31/32″ x 1/2″ Track, offers LED lighting solutions | Zaneen Architectural STMS-526F-48V-BLK Flexible Adapter - Black
by Prolicht – 3 31/32″ x 1/2″ Track, offers LED lighting solutions | Zaneen Architectural STMS-526F-48V-WHI Flexible Adapter - White
by Prolicht – 4 1/2″ x 1/2″ Track, offers LED lighting solutions | Zaneen Architectural STMS-526M-48V-BLK Mechanical Single Adapter No Contact 10N - Black
by Prolicht – 4 1/2″ x 1/2″ Track, offers LED lighting solutions | Zaneen Architectural STMS-526M-48V-WHI Mechanical Single Adapter No Contact 10N - White
by Prolicht – 4 1/2″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural STMS-526S-48V-BLK Single Spot Adapter Without Contacts - Black
by Prolicht – 4 1/2″ x 1/4″ Track, offers LED lighting solutions | Zaneen Architectural STMS-526S-48V-WHI Single Spot Adapter Without Contacts - White

Also Available within Series New Series

Micro Track 48V by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural STMR48V-SUS-SYS Micro Round-Track Modular System - Suspension
New
Micro Track 48V by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural STMS48V-SUR-SYS Micro Track Modular System - Surface Ceiling
New
Micro Track 48V by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural STMSH48V-SUS-SYS Micro H-Track Modular System - Suspension
New
Micro Track 48V by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural STMT48V-TRI-SYS Micro Track Modular System - Trimless
New
